Description

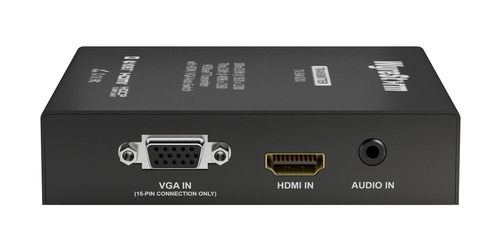

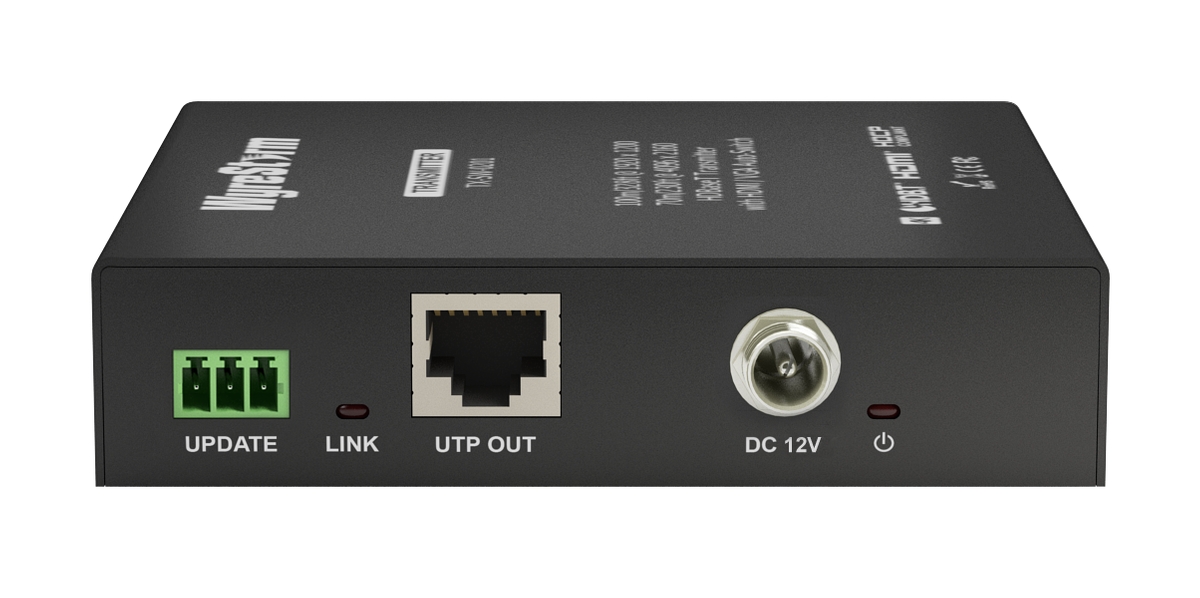

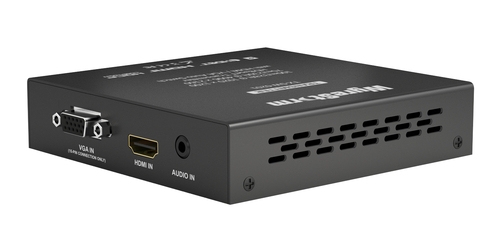

The WyreStorm TX-SW-0201 is an HDBaseT multi-format transmitter, the transmitter features 1 VGA, 1 audio, and 1 HDMI input. The transmitter features intelligent auto detection and will automatically switch by detecting the last plugged in input. This transmitter is designed to be used specifically on the HDBaseT inputs on the following WyreStorm products; SW-1001-HDBT, TX-POH-100, and AMP-001-010.
With the WyreStorm TX-SW-0201 you can send your HDMI signal up to 328′ over Cat5e/6 cable, or 230′ for 4K with the highest video quality. With a lot of features including built in auto switching the WyreStorm TX-SW-0201 is an easy to install HDBaseT auto switching solution for numerous applications.
If you are looking for the model that comes with the receiver that part number is EX-SW-0201-4K.
Specifications
Resolution: Supports up to 4K
HDCP 2.2 compliant
HDMI V1.4a compliant
24bit True Color (4K), 48bit Deep Color (1080p)
Supports 3D
Multichannel digital audio supporting 7.1 DTS Master HD and Dolby True HD
LED power status indicator
EDID management
Audio: Multichannel digital audio supporting 7.1 DTS Master HD and Dolby True HD

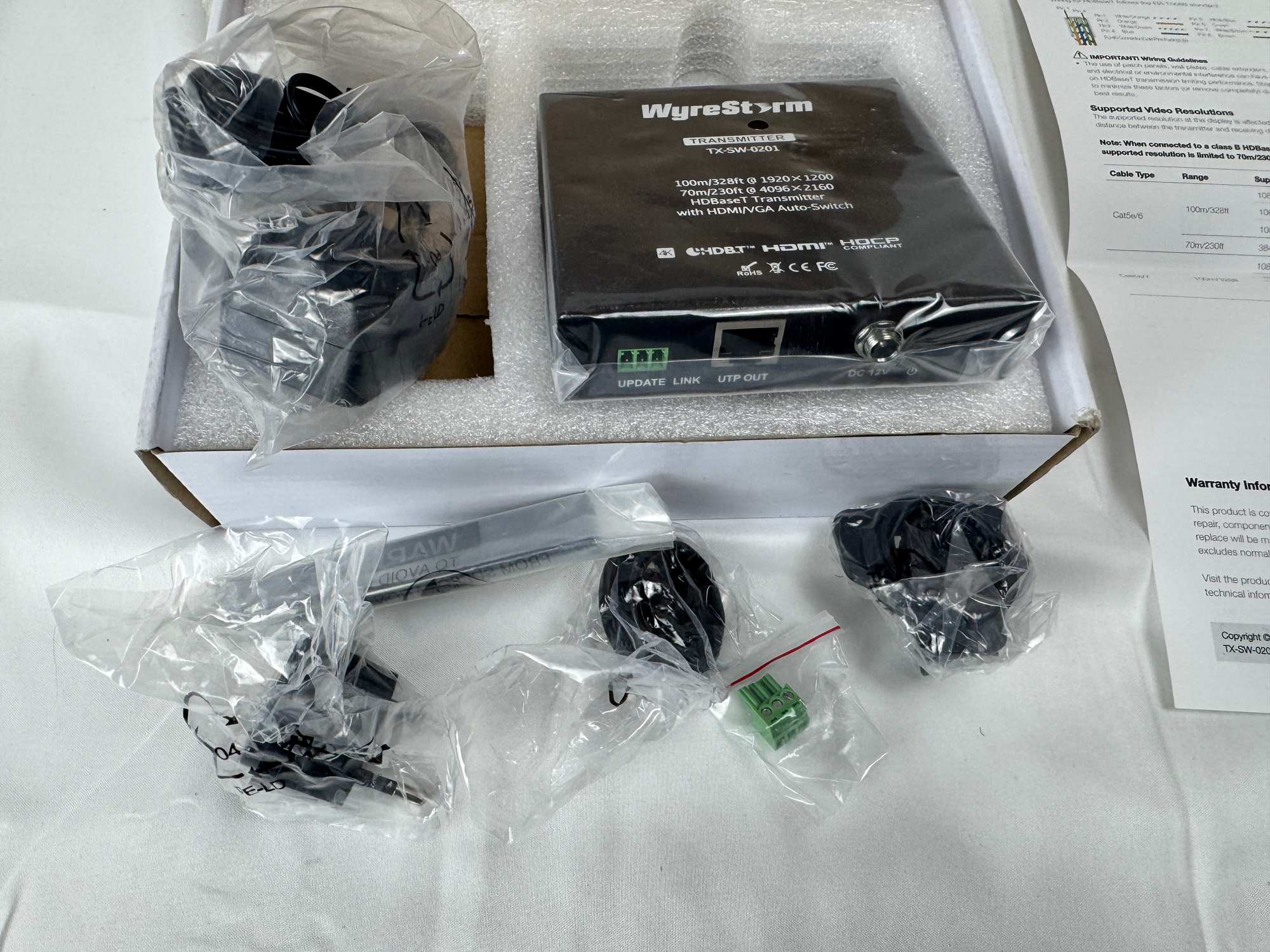

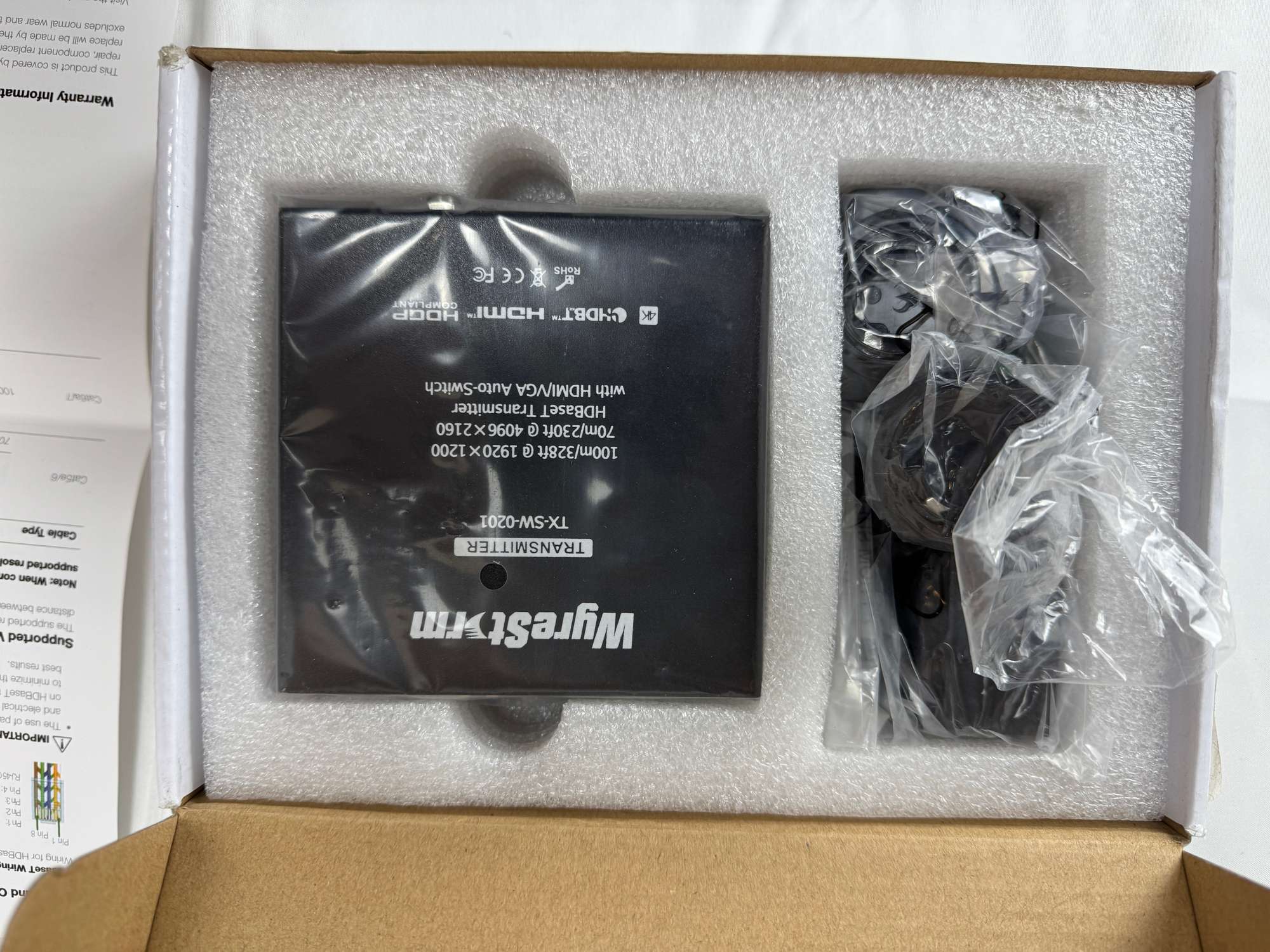

Includes: 1 transmitter, 1 power supply, 1 mounting bracket, 1 phoenix connector
Dimensions: 4.06″W x .09″H x 4.2″D
