NY Schneider Electric TRV00121 Front Display Modul

EAN:  3606480025389
Tillv. art.nr: TRV00121

Mer info:

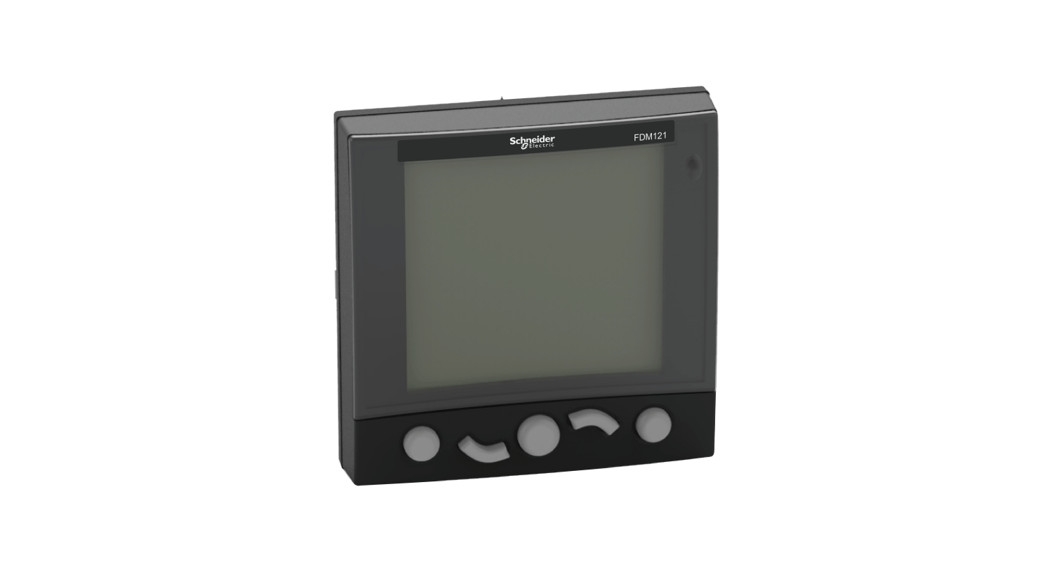

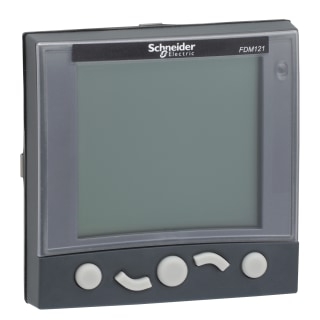

The Schneider Electric FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Master pact, Compact and PowerPact circuit breakers. FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP. Its LCD screen offers a high resolution with white backlighting. The FDM121 is equipped with a 24VDC terminal block and two RJ45 sockets for ULP connection. It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22mm diameter holes. The FDM121 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM121 firmware can be updated using EcoStruxure Power Commission software.

IP degree of protection – IP54
Control type – Remote control
Mounting mode – Flush mounting
Mounting support – Surface mount with kit
Display type – LCD screen with white backlighting
